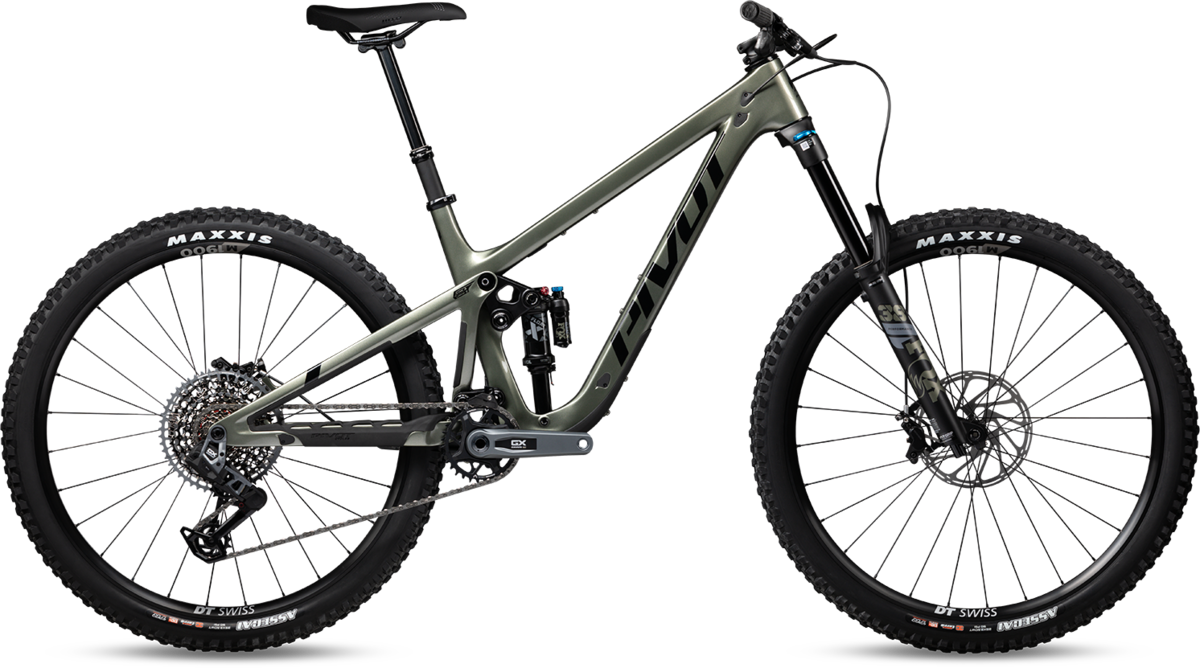

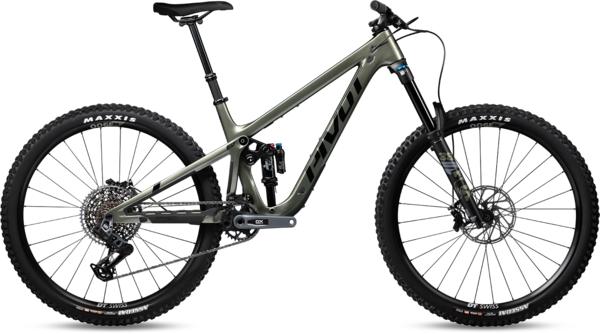

Pivot Cycles Firebird Ride GX AXS - Alloy Wheels

Pivot Cycles Firebird Ride GX AXS - Alloy Wheels
  • Color: Glacial Green Metallic
  • Color: Silver Sunrise
$7,299.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
This product is not available for online purchase. Please call us or visit our store.

Details

Modern geometry tailored for aggressive riding lets the Firebird rail at warp speed with battleship stability and laser precision. A relaxed head angle, long reach and generous wheelbase are the key ingredients of high-speed composure. Fast up, fast down. Fast.

The Firebird’s Hollow Core carbon construction cleanly disguises its psychotic side with a taut, sturdy, deceptively lightweight frame that calmly gets you out of the most gripped situations, Super-capable suspension, planted handling, perfectly selected components, shaken, not stirred; the cocktail mix for blazing speed. Drink up!

- Pivot’s full carbon frame feature size-specific ride tuning, leading edge carbon fiber materials and Pivot's proprietary hollow core molding technology to ensure that every rider from 5’2” to 6’9” has a bike that feels perfect and performs at the optimum level for their siz

- Long-and-low geometry for a confident, and size specific chainstay lengths refine the EWS Podium performance for different sized rider

- Phoenix DH-inspired longer dw-link® maximizes the Firebird’s rearward wheel-path for erasing square edge bumps and maximizing contro

- 165mm of supple-yet-efficient dw-link™ suspension travel featuring a vertically mounted trunnion metric coil-over or air shocks combined with 170mm front travel for unrivaled suspension performance

Product Details:

- Equipped with 44mm offset 170mm-travel Fox Factory and Performance Series 38 forks
- Ultra-adjustable Fox Float X2, Float X, Live Valve, and DHX2 coil rear shock options
- Compatible with both 29” and 27.5” wheel sizes without compromise thanks to the adjustable geometry for 29” 27.5” or MX wheel setups
- Fits tires up to 29x2.6” or 27.5x2.8” wide
- 12 x 157mm Super Boost Plus rear spacing adds stiffness and control
- 31.6mm size seatpost match with the Firebird’s short seat tube with deep insertions for longer travel posts
- Featuring the easy to find UDH rear derailleur hanger for peace of mind when traveling the world
- 1.5” headtube provides increased front-end stiffness and tracking
- Hassle-free, full-length, internal cable routing
- All sizes fit a water bottle inside the front triangle
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame
- Custom tuned Fox Live Valve builds allow for layers of tuning to allow for a plusher than plush feel unmatched by any other suspension setup
- Adjustable geometry with a flip chip upper link mount

Sizes:
Frame SizeSmallMediumLargeX-Large
Seat Tube Length (C-T) 37.5 41 44 47
Top Tube Length (cm) 59.8 / 59.7 62.4 / 62/3 64.1 / 64 66.5 / 66.4
Head Tube Length (cm) 9.5 10.8 11.8 12.8
HEad Tube Angle 64° / 64.6° 64° / 64.6° 64° / 64.6° 64° / 64.6°
Seat Tube Angle (Eff.) 76° / 76.5° 76.5° / 77° 77° / 77.5° 77° / 77.5°
Chainstay Length (cm) 43.1 / 43 43.4 / 43.3 43.8 / 43.7 44.5 / 44.4
Bottom Bracket Height (cm) 35 / 35.6 35 / 35.6 35 / 35.6 35 / 35.6
Bottom Bracket Drop (cm) 2 / 1.42 2 / 1.42 2 / 1.42 2 / 1.42
Standover (cm) 66.2 / 66.7 67.2 / 67.8 69.3 / 69.9 70.4 / 70.9
Wheelbase (cm) 120.7 / 120.6 123.9 / 123.7 126.7 / 126.6 130 / 129.9
Reach (cm) 44.5 / 45 46.8 / 47.3 48.8 / 49.3 51 / 51.5
Stack (cm) 61.5 / 61.2 62.7 / 62.4 63.6 / 63.3 64.5 / 64.2
Sizes:
Frame SizeRider Height (in)Rider Height (cm)
Small 5'2" – 5’8" 1,57 - 1,73 m
Medium 5'9" – 6'0" 1,73 - 1,83 m
Large 6'0" – 6'4' 1,83 - 1,93 m
X-Large 6'3" – 6'9' 1,90 - 2,06 m

Specs

Frame Firebird
Fork Fox Performance 38 29", 44mm offset, GRIP - 170mm
Rear Shock Fox Performance Float X
Wheels DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 29" 15x110 F/12x157 R
Tires Maxxis Assegai 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Crankset SRAM GX Eagle DUB 32t
Shifters SRAM AXS Pod Controller
Rear Derailleur SRAM GX Eagle Transmission 12-Speed
Cassette/Freewheel SRAM GX 1275 Eagle Transmission 10-52t
Chain Sram GX Eagle Flattop 12-Speed
Brakes SRAM DB8 Stealth 4-piston
Rotors Hayes D-Series 6-bolt - 203mm
Handlebars Phoenix Race Low Rise Aluminum - 800mm
Tape/Grips Phoenix Factory Lock-On
Stem Phoenix Team Enduro/Trail - 45mm
Headset Pivot Precision Sealed Cartridge
Seatpost SDG Tellis 130-150mm (SM), SDG Tellis 150-170mm (MD), SDG Tellis 180-200mm (LG) SDG Tellis 210-230mm (XL)
Saddle Phoenix WTB Volt Race (Medium Width)
Pedals Sold Separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Glacial Green Metallic / Small / 29-inch 196338110068 00F9CV329AGXB--GGMSMDRPFN 210000020750
Glacial Green Metallic / Medium / 29-inch 196338110051 00F9CV329AGXB--GGMMDDRPFN 210000022004
Glacial Green Metallic / Large / 29-inch 196338110044 00F9CV329AGXB--GGMLGDRPFN
Glacial Green Metallic / X-Large / 29-inch 196338110075 00F9CV329AGXB--GGMXLDRPFN
Silver Sunrise / Small / 29-inch 196338110198 00F9CV329AGXB--SSRSMDRPFN
Silver Sunrise / Medium / 29-inch 196338110167 00F9CV329AGXB--SSRMDDRPFN
Silver Sunrise / Large / 29-inch 196338110136 00F9CV329AGXB--SSRLGDRPFN
Silver Sunrise / X-Large / 29-inch 196338110228 00F9CV329AGXB--SSRXLDRPFN
