  • Color: Gloss Black/Charcoal
Color: Gloss Black/Charcoal
Size: Select size
Please select options Unavailable
Order now and pick up in-store for free

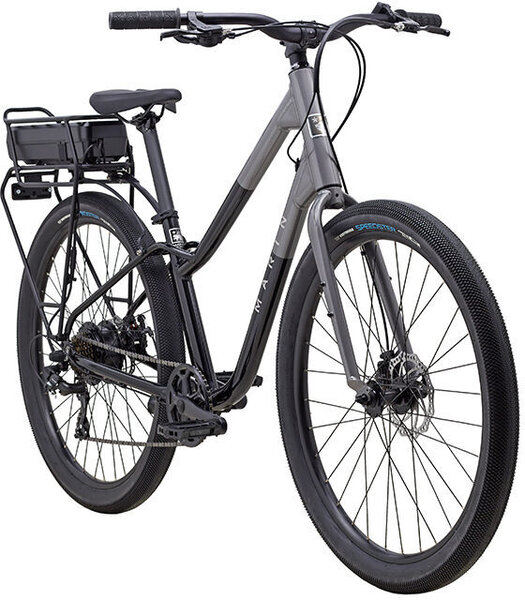

The Stinson E features a Series 1 6061 aluminum frame with exceptionally low standover, disc brake mounts, and rack and fender eyelets and high-volume 27.5" wheels. Stinson ST models further lower the standover height with a step-through frame design.

The Stinson E's rear hub motor puts the power into the rear wheel, transforming your fun and stylish bike into an amazing experience for everything from bike path cruising to daily commuting.

Enough battery to tackle a couple hours in the saddle, and still light and easy to carry with you to charge

The LCD display on the handlebars has on/off and mode change buttons, and clearly displays your current speed and range of the battery for easy reference. Bluetooth connectivity allows connection to the rider app, as well as effortless firmware updates.

The Stinson E's power is proportional to your pedaling input. As you pedal the bike it senses your power input and delivers the right amount of power in response. Want a fast and zippy ride, or tackle a big hill? Put it in level 3 and put some power down. Want to cruise? Put it in level 1 and spin away.


Geometry Chart:
A STACK (mm) 628.2 646.9 665.5 679.4
B REACH (mm) 340 355 370 381.6
C HEADTUBE ANGLE 68.5° 68.5° 68.5° 68.5°
D HEADTUBE LENGTH (mm) 210 230 250 265
E SEATTUBE ANGLE 67° 67° 67° 67°
F SEATTUBE LENGTH (mm) 382 406 444 470
G TOPTUBE EFFECTIVE (mm) 606.7 629.6 652.5 670
H BB HEIGHT (mm) 276.5 276.5 276.5 276.5
I BB DROP (mm) 68 68 68 68
J CHAINSTAY (mm) 490 490 490 490
K WHEELBASE (mm) 1089 1111 1134 1151
L STANDOVER HEIGHT (mm) 618.44 618.48 674.72 675.89
M FORK OFFSET (mm) 40 40 40 40
SEATPOST DIAMETER (mm) 30.9 30.9 30.9 30.9
HANDLEBAR WIDTH (mm) 700 700 700 700
STEM LENGTH (mm) 45 45 45 45
CRANK LENGTH (mm) 170 170 170 170
SizeRider height range
Small 5'0" to 5'5"
Medium 5'5" to 5'8"
Large 5'8" to 5'11"
X-Large 5'11" to 6'2"


Frame Series 1 Comfort, E-Bike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts
Fork CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets
Rims Marin Aluminum Double Wall, Disc Specific
Hubs Front: Forged Aluminum Alloy, 32H
Rear: 250 Watt Hub Motor, 36H
Spokes 14g Stainless Steel
Tires Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection
Bottom Bracket Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper
Crankset Alloy Crank, Steel 38T Chainring, Ring Guard
Shifters Shimano Altus 7-Speed RapidFire
Rear Derailleur Shimano Tourney, 7-Speed
Cassette/Freewheel Shimano 7-Speed Freewheel, 14-34T
Chain KMC Z8
Brakes Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Brake Levers Alloy, Long Pull
Handlebars Marin Alloy, 25mm Rise, 18° Backsweep
Tape/Grips Marin Adventure
Stem Marin Alloy
Headset FSA, TH No.10P
Seatpost Marin Alloy, 30.9mm
Saddle Marin Comfort
Pedals Marin Comfort Platform
Accessories & Extras Marin Stinson E Custom Alloy w/ Pannier Mounts and Top Deck, Alloy Center-Mount Kickstand
Motor 250W rear hub motor
Battery 309Wh, 36V, Rear Carrier Mounted
Controller/Display Handlebar Mount Switch & LCD Display

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Black/Charcoal / Small 843346114976 733965001
Gloss Black/Charcoal / Medium 843346114983 733965002
Gloss Black/Charcoal / Large 843346114990 733965003 210000014464
Gloss Black/Charcoal / X-Large 843346115003 733965004 210000014465
